Extron Delivers an Enhanced Room Experience for Microsoft Teams Rooms
Extron Delivers an Enhanced Room Experience for Microsoft Teams Rooms
Extron and Microsoft have come together to provide Microsoft Teams solutions with our certified hardware. Now you can stay connected with real-time collaboration from anywhere. The products in our Design Solutions that are Certified for Microsoft Teams have been designed and meticulously tested for best-in-class performance and ease of use.
On this page, you will find complete Certified designs, Featured solutions, and detailed information on the individual products they include. These designs and solutions can be deployed in any size environment, and in any application from enterprise to education to remote work.
Certified for Microsoft Teams Design Solutions

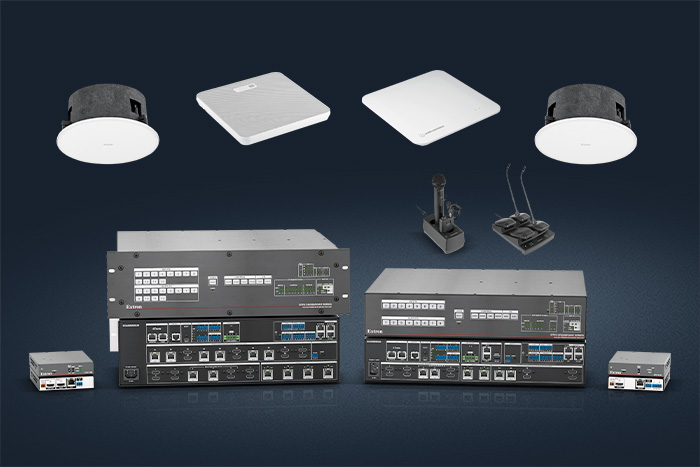

Audio-Technica ATND1061 and Engineered Sound Wireless
Sennheiser TeamConnect Ceiling Medium - Secure Communication
Sennheiser TeamConnect Ceiling 2

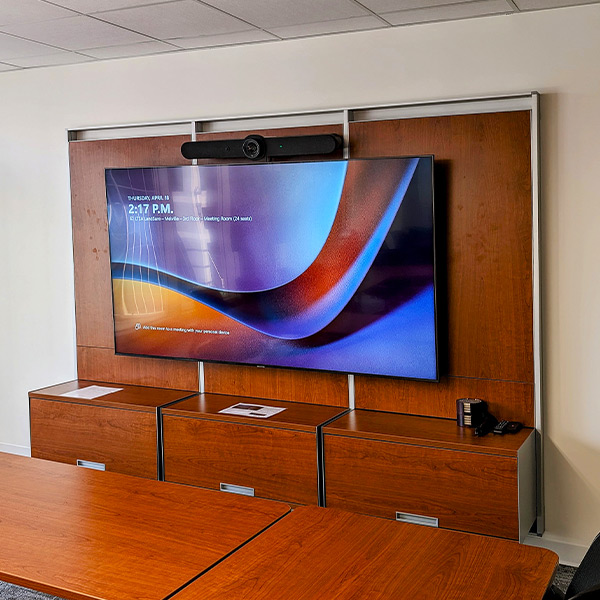

Medium Conference Room
Space requirements
Medium conference room accommodates up to ten people and includes Microsoft Teams Rooms conferencing capabilities, enabling participants in remote locations to join meetings. This system includes a single display, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The SF 3CT ceiling speakers deliver consistent sound levels across the entire meeting area.
Extron equipment list
| DMP 64 Plus C V AT | 6×4 Digital Matrix Processor w/ AEC, VoIP, & Dante | 1 |
|---|---|---|
| XPA U 1002-70V | Two Channel Amplifier, 100 watts at 70 volts | 1 |
| SF 3CT LP | 3" Full-Range Ceiling Speakers, 70/100V, Pair | 1 |
| IPCP Pro 250 xi | IPCP Pro xi Control Processor | 1 |
| RSU 129 | 1U 9.5" Deep Universal Rack Shelf, Gray | 1 |
| SPK16P/1000 | 16 AWG Plenum Speaker Cable - 75' (22.8 m) | 1 |
| USB CFG Cable | USB A Male to USB Mini B Male 6' (1.8 m) | 1 |
| Audio Cable | Balanced audio cable for Audio DSP output to Amplifier Input - 6' (1.8 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 35' (10.7 m) | 1 |
| Network Cable | Cat-6 Non-Plenum network cable - 6' (1.8 m) | 2 |
Sennheiser equipment list
| TeamConnect Ceiling Medium | Beamforming Ceiling Microphone array - White | 1 |
|---|
Network Switch
| Network Switch | 10 port PoE network switch | 1 |
|---|
Additional Required Equipment
| MTR Computer | Microsoft Teams Rooms Computer with Camera and Control interface | 1 |
|---|
Capabilities
- Connect the room with a Microsoft Teams Rooms meeting
- Exceptional intelligibility with Extron AEC and the Sennheiser TeamConnect Ceiling Medium beamforming ceiling microphone array
- Enterprise level routing flexibility and device compatibility with Dante AoIP
- Clear audio playback

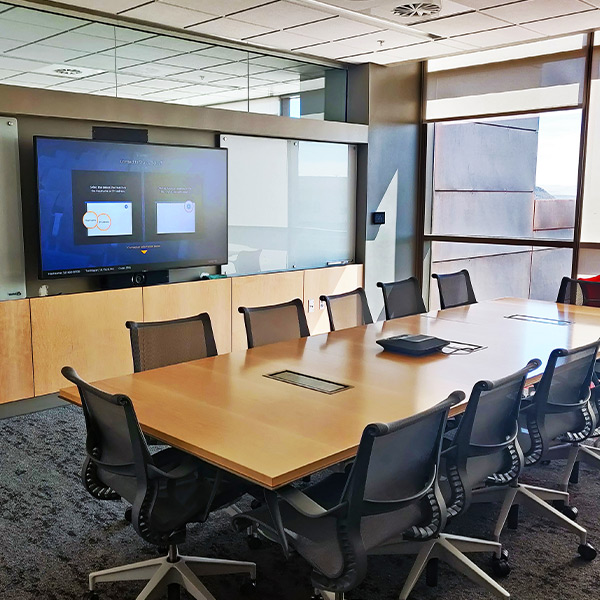

Large Conference Room
Space requirements
Large conference room accommodates up to 15 people and includes Microsoft Teams Rooms conferencing capabilities, enabling anyone in remote locations to participate in meetings. This system includes dual displays, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The room size requires an audio system with high intelligibility ceiling mounted speakers for even sound distribution, and ceiling mounted microphones for in-room participation.
Extron equipment list
| DMP 128 Plus C V AT | 12x8 Digital Matrix Processor w/ AEC, VoIP, & Dante | 1 |
|---|---|---|
| XPA U 1004 SB | Four Channel Bridgeable Output Amplifier | 1 |
| SF 26CT LP | 6.5" Two-Way Ceiling Speakers, 70/100V, Pair | 2 |
| IPCP Pro 255Q xi | IPCP Pro xi Quad Core Control Processor | 1 |
| RSU 129 | 1U 9.5" Deep Universal Rack Shelf, Gray | 1 |
| SPK14P/1000 | 14 AWG Plenum Speaker Cable - 150' (45.7 m) | 1 |
| USB CFG Cable | USB A Male to USB Mini B Male 6' (1.8 m) | 1 |
| Audio Cable | Balanced audio cable for Audio DSP output to Amplifier Input - 6' (1.8 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 50' (15.2 m) | 1 |
| Network Cable | Cat-6 Non-Plenum network cable - 6' (1.8 m) | 2 |
Sennheiser equipment list
| TeamConnect Ceiling Medium | Beamforming Ceiling Microphone array - White | 1 |
|---|
Network Switch
| Network Switch | 10 port PoE network switch | 1 |
|---|
Additional Required Equipment
| MTR Computer | Microsoft Teams Rooms Computer with Camera and Control interface | 1 |
|---|
Capabilities
- Connect the room with a Microsoft Teams Rooms meeting
- Exceptional intelligibility with Extron AEC and the Sennheiser TeamConnect Ceiling Medium beamforming ceiling microphone array
- Enterprise level routing flexibility and device compatibility with Dante AoIP
- Clear audio playback

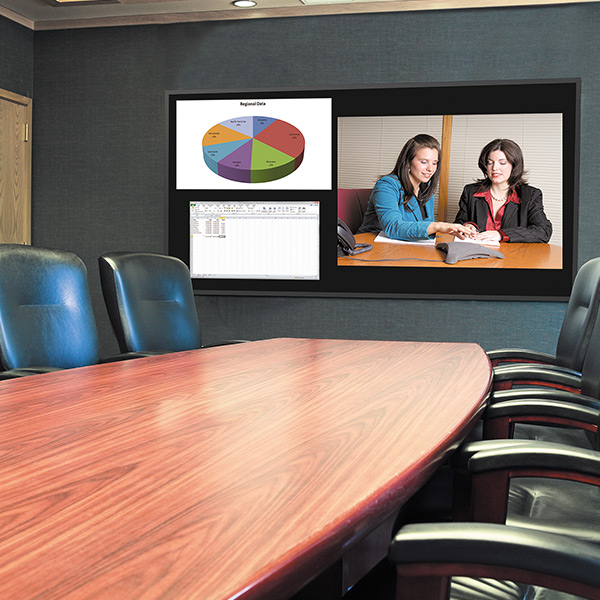

Extra Large Conference Room
Space requirements
Extra Large conference room accommodates up to 18+ people and includes Microsoft Teams Rooms conferencing capabilities, enabling anyone in remote locations to participate in meetings. This system includes dual displays, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The room size requires an audio system with high intelligibility ceiling mounted speakers for even sound distribution, and ceiling mounted microphones for in-room participation.
Extron equipment list
| DMP 128 Plus C V AT | 12x8 Digital Matrix Processor w/ AEC, VoIP, & Dante | 1 |
|---|---|---|
| XPA U 1004 SB | Four Channel Bridgeable Output Amplifier | 1 |
| SF 26CT LP | 6.5" Two-Way Ceiling Speakers, 70/100V, Pair | 3 |
| IPCP Pro 255Q xi | IPCP Pro xi Quad Core Control Processor | 1 |
| RSU 129 | 1U 9.5" Deep Universal Rack Shelf, Gray | 1 |
| SPK14P/1000 | 14 AWG Plenum Speaker Cable - 150' (45.7 m) | 1 |
| USB CFG Cable | USB A Male to USB Mini B Male 6' (1.8 m) | 1 |
| Audio Cable | Balanced audio cable for Audio DSP output to Amplifier Input - 6' (1.8 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 50' (15.2 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 35' (10.7 m) | 1 |
| Network Cable | Cat-6 Non-Plenum network cable - 6' (1.8 m) | 2 |
Sennheiser equipment list
| TeamConnect Ceiling Medium | Beamforming Ceiling Microphone array - White | 2 |
|---|
Network Switch
| Network Switch | 10 port PoE network switch | 1 |
|---|
Additional Required Equipment
| MTR Computer | Microsoft Teams Rooms Computer with Camera and Control interface | 1 |
|---|
Capabilities
- Connect the room with a Microsoft Teams Rooms meeting
- Exceptional intelligibility with Extron AEC and the Sennheiser TeamConnect Ceiling Medium beamforming ceiling microphone array
- Enterprise level routing flexibility and device compatibility with Dante AoIP
- Clear audio playback

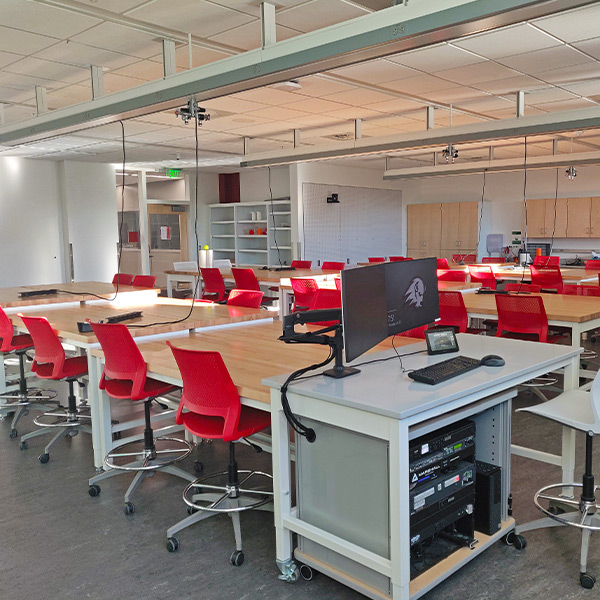

Classroom or Training Room
Space requirements
Typical classrooms accommodate up to 18+ people and include Microsoft Teams Rooms conferencing capabilities for remote learning. This system includes dual displays, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The room size and use require an audio system with high intelligibility and even sound distribution from ceiling mounted speakers. Ceiling mounted microphones enable in-room student participation.
Extron equipment list
| DMP 128 Plus C V AT | 12x8 Digital Matrix Processor w/ AEC, VoIP, & Dante | 1 |
|---|---|---|
| XPA U 1004 SB | Four Channel Bridgeable Output Amplifier | 1 |
| SF 26CT LP | 6.5" Two-Way Ceiling Speakers, 70/100V, Pair | 3 |
| IPCP Pro 255Q xi | IPCP Pro xi Quad Core Control Processor | 1 |
| RSU 129 | 1U 9.5" Deep Universal Rack Shelf, Gray | 1 |
| SPK14P/1000 | 14 AWG Plenum Speaker Cable - 150' (45.7 m) | 1 |
| USB CFG Cable | USB A Male to USB Mini B Male 6' (1.8 m) | 1 |
| Audio Cable | Balanced audio cable for Audio DSP output to Amplifier Input - 6' (1.8 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 50' (15.2 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 35' (10.7 m) | 1 |
| Network Cable | Cat-6 Non-Plenum network cable - 6' (1.8 m) | 2 |
Sennheiser equipment list
| TeamConnect Ceiling Medium | Beamforming Ceiling Microphone array - White | 2 |
|---|
Network Switch
| Network Switch | 10 port PoE network switch | 1 |
|---|
Additional Required Equipment
| MTR Computer | Microsoft Teams Rooms Computer with Camera and Control interface | 1 |
|---|
Capabilities
- Connect the room with a Microsoft Teams Rooms meeting
- Exceptional intelligibility with Extron AEC and the Sennheiser TeamConnect Ceiling Medium beamforming ceiling microphone array
- Enterprise level routing flexibility and device compatibility with Dante AoIP
- Clear audio playback
Medium Conference Room
Space requirements
Medium conference room accommodates up to ten people and includes Microsoft Teams Rooms conferencing capabilities, enabling participants in remote locations to join meetings. This system includes a single display, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The SF 3CT ceiling speakers deliver consistent sound levels across the entire meeting area.
Extron equipment list
| DMP 64 Plus C V AT | 6×4 Digital Matrix Processor w/ AEC, VoIP, & Dante | 1 |
|---|---|---|
| XPA U 1002-70V | Two Channel Amplifier, 100 watts at 70 volts | 1 |
| SF 3CT LP | 3" Full-Range Ceiling Speakers, 70/100V, Pair | 1 |
| SPK16P/1000 | 16 AWG Plenum Speaker Cable - 75' (22.8 m) | 1 |
| USB CFG Cable | USB A Male to USB Mini B Male 6' (1.8 m) | 1 |
| Audio Cable | Balanced audio cable for Audio DSP output to Amplifier Input - 6' (1.8 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 35' (10.7 m) | 2 |
| Network Cable | Cat-6 Non-Plenum network cable - 6' (1.8 m) | 1 |
Sennheiser equipment list
| TeamConnect Ceiling 2 | Beamforming Ceiling Microphone array | 1 |
|---|---|---|
| SL CM EB US | 2' x 2' Flush-mounted Kit | 1 |
Network Switch
| Network Switch | 10 port PoE network switch | 1 |
|---|
Additional Required Equipment
| MTR Computer | Microsoft Teams Rooms Computer with Camera and Control interface | 1 |
|---|
Capabilities
- Connect the room with a Microsoft Teams Rooms meeting
- Exceptional intelligibility with Extron AEC and the Sennheiser TeamConnect Ceiling 2 microphone array
- Enterprise level routing flexibility and device compatibility with Dante AoIP
- Clear audio playback
Large Conference Room
Space requirements
Large conference room accommodates up to 15 people and includes Microsoft Teams Rooms conferencing capabilities, enabling anyone in remote locations to participate in meetings. This system includes dual displays, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The room size requires an audio system with high intelligibility ceiling mounted speakers for even sound distribution, and ceiling mounted microphones for in-room participation.
Extron equipment list
| DMP 128 Plus C V AT | 12x8 Digital Matrix Processor w/ AEC, VoIP, & Dante | 1 |
|---|---|---|
| XPA U 1004 SB | Four Channel Bridgeable Output Amplifier | 1 |
| SF 26CT LP | 6.5" Two-Way Ceiling Speakers, 70/100V, Pair | 2 |
| SPK14P/1000 | 14 AWG Plenum Speaker Cable - 150' (45.7 m) | 1 |
| USB CFG Cable | USB A Male to USB Mini B Male 6' (1.8 m) | 1 |
| Audio Cable | Balanced audio cable for Audio DSP output to Amplifier Input - 6' (1.8 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 50' (15.2 m) | 2 |
| Network Cable | Cat-6 Non-Plenum network cable - 6' (1.8 m) | 1 |
Sennheiser equipment list
| TeamConnect Ceiling 2 | Beamforming Ceiling Microphone array | 1 |
|---|---|---|
| SL CM EB US | 2' x 2' Flush-mounted Kit | 1 |
Network Switch
| Network Switch | 10 port PoE network switch | 1 |
|---|
Additional Required Equipment
| MTR Computer | Microsoft Teams Rooms Computer with Camera and Control interface | 1 |
|---|
Capabilities
- Connect the room with a Microsoft Teams Rooms meeting
- Exceptional intelligibility with Extron AEC and the Sennheiser TeamConnect Ceiling 2 microphone array
- Enterprise level routing flexibility and device compatibility with Dante AoIP
- Clear audio playback
Extra Large Conference Room
Space requirements
Extra Large conference room accommodates up to 18+ people and includes Microsoft Teams Rooms conferencing capabilities, enabling anyone in remote locations to participate in meetings. This system includes dual displays, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The room size requires an audio system with high intelligibility ceiling mounted speakers for even sound distribution, and ceiling mounted microphones for in-room participation.
Extron equipment list
| DMP 128 Plus C V AT | 12x8 Digital Matrix Processor w/ AEC, VoIP, & Dante | 1 |
|---|---|---|
| XPA U 1004 SB | Four Channel Bridgeable Output Amplifier | 1 |
| SF 26CT LP | 6.5" Two-Way Ceiling Speakers, 70/100V, Pair | 3 |
| SPK14P/1000 | 14 AWG Plenum Speaker Cable - 150' (45.7 m) | 1 |
| USB CFG Cable | USB A Male to USB Mini B Male 6' (1.8 m) | 1 |
| Audio Cable | Balanced audio cable for Audio DSP output to Amplifier Input - 6' (1.8 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 50' (15.2 m) | 2 |
| Network Cable | Cat-6 Plenum network cable - 35' (10.7 m) | 2 |
| Network Cable | Cat-6 Non-Plenum network cable - 6' (1.8 m) | 1 |
Sennheiser equipment list
| TeamConnect Ceiling 2 | Beamforming Ceiling Microphone array | 2 |
|---|---|---|
| SL CM EB US | 2' x 2' Flush-mounted Kit | 2 |
Network Switch
| Network Switch | 10 port PoE network switch | 1 |
|---|
Additional Required Equipment
| MTR Computer | Microsoft Teams Rooms Computer with Camera and Control interface | 1 |
|---|
Capabilities
- Connect the room with a Microsoft Teams Rooms meeting
- Exceptional intelligibility with Extron AEC and the Sennheiser TeamConnect Ceiling 2 microphone array
- Enterprise level routing flexibility and device compatibility with Dante AoIP
- Clear audio playback
Classroom or Training Room
Space requirements
Typical classrooms accommodate up to 18+ people and include Microsoft Teams Rooms conferencing capabilities for remote learning. This system includes dual displays, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The room size and use require an audio system with high intelligibility and even sound distribution from ceiling mounted speakers. Ceiling mounted microphones enable in-room student participation.
Extron equipment list
| DMP 128 Plus C V AT | 12x8 Digital Matrix Processor w/ AEC, VoIP, & Dante | 1 |
|---|---|---|
| XPA U 1004 SB | Four Channel Bridgeable Output Amplifier | 1 |
| SF 26CT LP | 6.5" Two-Way Ceiling Speakers, 70/100V, Pair | 3 |
| SPK14P/1000 | 14 AWG Plenum Speaker Cable - 150' (45.7 m) | 1 |
| USB CFG Cable | USB A Male to USB Mini B Male 6' (1.8 m) | 1 |
| Audio Cable | Balanced audio cable for Audio DSP output to Amplifier Input - 6' (1.8 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 50' (15.2 m) | 2 |
| Network Cable | Cat-6 Plenum network cable - 35' (10.7 m) | 2 |
| Network Cable | Cat-6 Non-Plenum network cable - 6' (1.8 m) | 1 |
Sennheiser equipment list
| TeamConnect Ceiling 2 | Beamforming Ceiling Microphone array | 2 |
|---|---|---|
| SL CM EB US | 2' x 2' Flush-mounted Kit | 2 |
Network Switch
| Network Switch | 10 port PoE network switch | 1 |
|---|
Additional Required Equipment
| MTR Computer | Microsoft Teams Rooms Computer with Camera and Control interface | 1 |
|---|
Capabilities
- Connect the room with a Microsoft Teams Rooms meeting
- Exceptional intelligibility with Extron AEC and the Sennheiser TeamConnect Ceiling 2 microphone array
- Enterprise level routing flexibility and device compatibility with Dante AoIP
- Clear audio playback

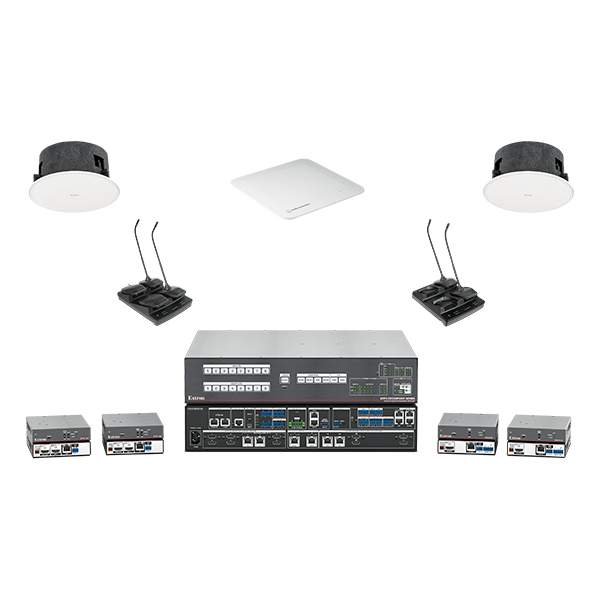

Medium Conference Room
Space requirements
Medium conference room accommodates up to ten people and includes Microsoft Teams Rooms conferencing capabilities, enabling participants in remote locations to join meetings. This system includes a single display, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The SF 3CT ceiling speakers deliver consistent sound levels across the entire meeting area.
Extron equipment list
| DTP3 CrossPoint 642 IPCP A LL | 4K/60 Presentation Matrix Switcher Configurable from 6x6 to 8x4 | 1 |
|---|---|---|
| SF 3CT LP | 3" Full-Range Ceiling Speakers, 70/100V, Pair | 1 |
| DTP3 T 202 | 4K/60 HDMI DTP3 Transmitter with Input Loop-Out | 2 |
| DTP3 R 201 | 4K/60 HDMI DTP3 Receiver with Audio De-Embedding | 2 |
| HDMI Ultra Series | Ultra Flexible Premium High Speed HDMI Cables - 9' (2.7 m) | 4 |
| MBU 125 | Low-Profile Mount Kit for 1/4 and 1/2 Rack Width, Two-Piece Enclosures | 4 |
| XTP DTP 22 Series | Precision-terminated Shielded Twisted Pair Cables for XTP Systems and DTP Systems - 35' (10.6 m) | 4 |
| SPK16P/1000 | 16 AWG Plenum Speaker Cable - 75' (22.8 m) | 1 |
| USBC | USB C to USB C - 6' (1.8 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 35' (10.7 m) | 2 |
| Network Cable | Cat-6 Non-Plenum network cable - 6' (1.8 m) | 2 |
Audio-Technica equipment list
| ESW-R4180DAN | Engineered Sound Wireless Systems (ESW) 8ch Receiver (1.9 GHz) - Dante | 1 |
|---|---|---|
| ESW-T4106 | ESW Boundary microphone transmitter (1.9 GHz) | 2 |
| ESW-T4107 | ESW Desk Stand Transmitter and Gooseneck Microphones (1.9 GHz) | 4 |
| ESW-CHG5AD | Four-bay desk stand and boundary charging station with Power Supply | 1 |
| ESW-CHG5 | Four-bay desk stand and boundary charging station | 1 |
Network Switch
| Network Switch | 10 port PoE network switch | 1 |
|---|
Additional Required Equipment
| MTR Computer | Microsoft Teams Rooms Computer with Camera and Control interface | 1 |
|---|
Capabilities
- Connect the room with a Microsoft Teams Rooms meeting
- Exceptional intelligibility with Extron AEC and the Audio Technica Engineered Sound Wireless Systems
- Enterprise level routing flexibility and device compatibility with Dante AoIP
- Clear audio playback
Large Conference Room
Space requirements
Large conference room accommodates up to 15 people and includes Microsoft Teams Rooms conferencing capabilities, enabling anyone in remote locations to participate in meetings. This system includes dual displays, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The room size requires an audio system with high intelligibility ceiling mounted speakers for even sound distribution, and ceiling mounted microphones for in-room participation.
Extron equipment list
| DTP3 CrossPoint 884 IPCP A LL | 4K/60 Presentation Matrix Switcher Configurable from 8x12 to 12x8 | 1 |
|---|---|---|
| SF 26CT LP | 6.5" Two-Way Ceiling Speakers, 70/100V, Pair | 2 |
| DTP3 T 202 | 4K/60 HDMI DTP3 Transmitter with Input Loop-Out | 2 |
| DTP3 R 201 | 4K/60 HDMI DTP3 Receiver with Audio De-Embedding | 2 |
| HDMI Ultra Series | Ultra Flexible Premium High Speed HDMI Cables - 9' (2.7 m) | 4 |
| MBU 125 | Low-Profile Mount Kit for 1/4 and 1/2 Rack Width, Two-Piece Enclosures | 4 |
| XTP DTP 22 Series | Precision-terminated Shielded Twisted Pair Cables for XTP Systems and DTP Systems - 35' (10.6 m) | 4 |
| SPK14P/1000 | 14 AWG Plenum Speaker Cable - 150' (45.7 m) | 1 |
| USBC | USB C to USB C - 6' (1.8 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 35' (10.7 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 50' (15.2 m) | 1 |
| Network Cable | Cat-6 Non-Plenum network cable - 6' (1.8 m) | 2 |
Audio-Technica equipment list
| ATND1061 | Beamforming Ceiling Array Microphone - Dante | 1 |
|---|---|---|
| ESW-R4180DAN | Engineered Sound Wireless Systems (ESW) 8ch Receiver (1.9 GHz) - Dante | 1 |
| ESW-T4102/C510 | ESW Handheld Transmitter (1.9 GHz) | 1 |
| ESW-T4101 | ESW Lavalier wireless microphone transmitter (1.9 GHz) | 1 |
| ESW-CHG4 | Two-Bay Body-Pack and Handheld Charging Station | 1 |
Network Switch
| Network Switch | 10 port PoE network switch | 1 |
|---|
Additional Required Equipment
| MTR Computer | Microsoft Teams Rooms Computer with Camera and Control interface | 1 |
|---|
Capabilities
- Connect the room with a Microsoft Teams Rooms meeting
- Exceptional intelligibility with Extron AEC and the Audio Technica ATND1061 Ceiling microphone array and Engineered Sound Wireless Systems
- Enterprise level routing flexibility and device compatibility with Dante AoIP
- Clear audio playback

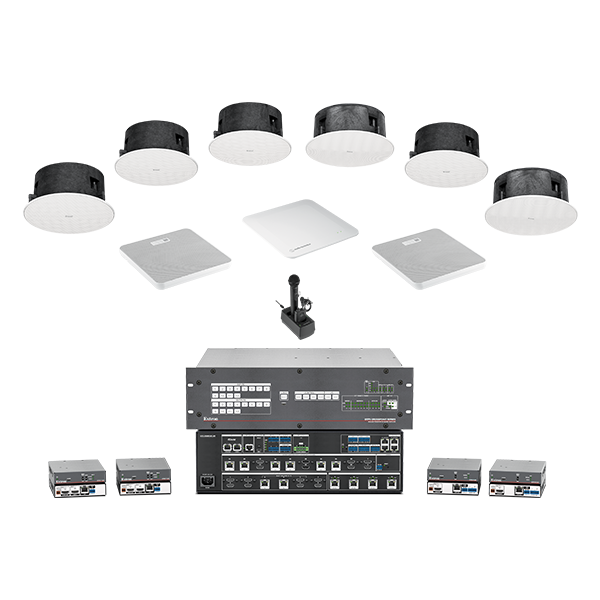

Extra Large Conference Room
Space requirements
Extra Large conference room accommodates up to 18+ people and includes Microsoft Teams Rooms conferencing capabilities, enabling anyone in remote locations to participate in meetings. This system includes dual displays, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The room size requires an audio system with high intelligibility ceiling mounted speakers for even sound distribution, and ceiling mounted microphones for in-room participation.
Extron equipment list
| DTP3 CrossPoint 884 IPCP A LL | 4K/60 Presentation Matrix Switcher Configurable from 8x12 to 12x8 | 1 |
|---|---|---|
| SF 26CT LP | 6.5" Two-Way Ceiling Speakers, 70/100V, Pair | 3 |
| DTP3 T 202 | 4K/60 HDMI DTP3 Transmitter with Input Loop-Out | 2 |
| DTP3 R 201 | 4K/60 HDMI DTP3 Receiver with Audio De-Embedding | 2 |
| HDMI Ultra Series | Ultra Flexible Premium High Speed HDMI Cables - 9' (2.7 m) | 4 |
| MBU 125 | Low-Profile Mount Kit for 1/4 and 1/2 Rack Width, Two-Piece Enclosures | 4 |
| XTP DTP 22 Series | Precision-terminated Shielded Twisted Pair Cables for XTP Systems and DTP Systems - 35' (10.6 m) | 4 |
| SPK14P/1000 | 14 AWG Plenum Speaker Cable - 150' (45.7 m) | 1 |
| USBC | USB C to USB C - 6' (1.8 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 35' (10.7 m) | 2 |
| Network Cable | Cat-6 Plenum network cable - 50' (15.2 m) | 2 |
| Network Cable | Cat-6 Non-Plenum network cable - 6' (1.8 m) | 2 |
Audio-Technica equipment list
| ATND1061 | Beamforming Ceiling Array Microphone - Dante | 2 |
|---|---|---|
| ESW-R4180DAN | Engineered Sound Wireless Systems (ESW) 8ch Receiver (1.9 GHz) - Dante | 1 |
| ESW-T4102/C510 | ESW Handheld Transmitter (1.9 GHz) | 1 |
| ESW-T4101 | ESW Lavalier wireless microphone transmitter (1.9 GHz) | 1 |
| ESW-CHG4 | Two-Bay Body-Pack and Handheld Charging Station | 1 |
Network Switch
| Network Switch | 10 port PoE network switch | 1 |
|---|
Additional Required Equipment
| MTR Computer | Microsoft Teams Rooms Computer with Camera and Control interface | 1 |
|---|
Capabilities
- Connect the room with a Microsoft Teams Rooms meeting
- Exceptional intelligibility with Extron AEC and the Audio Technica ATND1061 Ceiling microphone array and Engineered Sound Wireless Systems
- Enterprise level routing flexibility and device compatibility with Dante AoIP
- Clear audio playback
Classroom or Training Room
Space requirements
Typical classrooms accommodate up to 18+ people and include Microsoft Teams Rooms conferencing capabilities for remote learning. This system includes dual displays, an MTR Computer for Microsoft Teams Rooms conferencing, as well as a single camera. The room size and use require an audio system with high intelligibility and even sound distribution from ceiling mounted speakers. Ceiling mounted microphones enable in-room student participation.
Extron equipment list
| DTP3 CrossPoint 884 IPCP A LL | 4K/60 Presentation Matrix Switcher Configurable from 8x12 to 12x8 | 1 |
|---|---|---|
| SF 26CT LP | 6.5" Two-Way Ceiling Speakers, 70/100V, Pair | 3 |
| DTP3 T 202 | 4K/60 HDMI DTP3 Transmitter with Input Loop-Out | 2 |
| DTP3 R 201 | 4K/60 HDMI DTP3 Receiver with Audio De-Embedding | 2 |
| HDMI Ultra Series | Ultra Flexible Premium High Speed HDMI Cables - 9' (2.7 m) | 4 |
| MBU 125 | Low-Profile Mount Kit for 1/4 and 1/2 Rack Width, Two-Piece Enclosures | 4 |
| XTP DTP 22 Series | Precision-terminated Shielded Twisted Pair Cables for XTP Systems and DTP Systems - 35' (10.6 m) | 4 |
| SPK14P/1000 | 14 AWG Plenum Speaker Cable - 150' (45.7 m) | 1 |
| USBC | USB C to USB C - 6' (1.8 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 35' (10.7 m) | 2 |
| Network Cable | Cat-6 Plenum network cable - 50' (15.2 m) | 2 |
| Network Cable | Cat-6 Non-Plenum network cable - 6' (1.8 m) | 2 |
Audio-Technica equipment list
| ATND1061 | Beamforming Ceiling Array Microphone - Dante | 2 |
|---|---|---|
| ESW-R4180DAN | Engineered Sound Wireless Systems (ESW) 8ch Receiver (1.9 GHz) - Dante | 1 |
| ESW-T4102/C510 | ESW Handheld Transmitter (1.9 GHz) | 1 |
| ESW-T4101 | ESW Lavalier wireless microphone transmitter (1.9 GHz) | 1 |
| ESW-CHG4 | Two-Bay Body-Pack and Handheld Charging Station | 1 |
Network Switch
| Network Switch | 10 port PoE network switch | 1 |
|---|
Additional Required Equipment
| MTR Computer | Microsoft Teams Rooms Computer with Camera and Control interface | 1 |
|---|
Capabilities
- Connect the room with a Microsoft Teams Rooms meeting
- Exceptional intelligibility with Extron AEC and the Audio Technica ATND1061 Ceiling microphone array and Engineered Sound Wireless Systems
- Enterprise level routing flexibility and device compatibility with Dante AoIP
- Clear audio playback
Control Solutions
Delivering an Enhanced Room Experience
Extron has teamed up with companies to extend our Pro Series control capabilities to Microsoft Teams Rooms. With Extron Control for Microsoft Teams Rooms, a single user interface is all you need to control every conferencing, audiovisual, and room function. Together, Extron and these companies deliver complete AV and conferencing control across the enterprise. Extron has simplified the conferencing experience and provides a new level of convenience with turn-key, centralized control of AV devices, shades, lighting, audio, and much more – all from the familiar Microsoft Teams Rooms interface.
Learn More
Featured Microsoft Teams Rooms Solutions
Products Certified for Microsoft Teams
DMP 64 Plus Series
6x4 Digital Matrix Processors
XPA U 1004 SB
Four Channel Bridgeable Output Power Amp
SF 26CT LP
SoundField XD 6.5" Two-Way Ceiling Speaker with Low Profile Back Can
SF 3CT LP
Full Range 3" Ceiling Speaker, Low Profile
DMP 128 Plus Series
12x8 ProDSP Digital Matrix Processors
XPA U 1002
Two Channel Amp, 100 watts at 70 volts
SF 26CT
SoundField XD 6.5" Two-Way Ceiling Speaker
SF 3C LP
Full Range 3" Ceiling Speaker, Low Profile
DMP 128 FlexPlus Series
ProDSP Dante Digital Matrix Processors
IP Link Pro xi Series
IP Link Pro xi Series Control Processors
DTP3 CrossPoint 884
4K/60 Presentation Matrix Switcher Configurable from 8x12 to 12x8
DTP3 CrossPoint 642
4K/60 Presentation Matrix Switcher Configurable from 6x6 to 8x4
Chrome
Firefox
Edge
Safari
