XPA U 2004 FX New

Four Channel Configurable Output Audio Power Amplifier
200 Watts Per Channel

Key Features

Four 200 watt channels into 8 ohms, 4 ohms, 70V, or 100V
Configurable output mode per channel
Flexible power allocation to match system requirements
InstaWake+™ exits auto-standby mode in under 5 milliseconds
ECO Standby delivers power only when needed, maximizing energy savings
Meets Ecofficient^® Level 4

Model	Version Description	Part #
XPA U 2004 FX	Four Channel Flexible Output Amp, 200 Watts	60-2026-01
XPA U 2004 FX	4 Ch Flexible Output Amp w/ ECO Standby, 200 Watts	60-2026-02
AFK 100	Air Filter Kit for Ultra FX Amps - 10 Pack	70-1341-01

The Extron XPA U 2004 FX is a four-channel, high-performance audio power amplifier that can deliver 200 watts simultaneously into 8 ohm, 4 ohm, 70 volt, and 100 volt loads in multi-zone systems. Rotary switches on the rear panel make it quick and easy to independently select an output mode per channel to power each zone. This highly Ecofficient Level 4 amplifier features InstaWake+™, the ability to return to full power from standby in under 5 milliseconds. For maximum flexibility, the total power of two adjacent 200 watt channels is shared, delivering up to 400 watts per single channel, according to system requirements. The fan-cooled enclosure does not require adjacent empty rack spaces for ventilation and includes front and rear rack mount hardware for stability.

Configurable Output Modes and Flexible Power Allocation

Output modes can be independently configured per channel for 8 ohm, 4 ohm, 70 volt or 100 volt operation, with the option of adding a high pass filter in 70V or 100V mode. This allows a single XPA U 2004 FX amplifier to drive multiple types of speakers simultaneously, saving cost and space.

The total power of each odd/even channel pair is shared between the two channels. This adds to the multi-zone flexibility of the XPA U 2004 FX by allowing a single amplifier to meet the SPL requirements of multiple speaker zones.

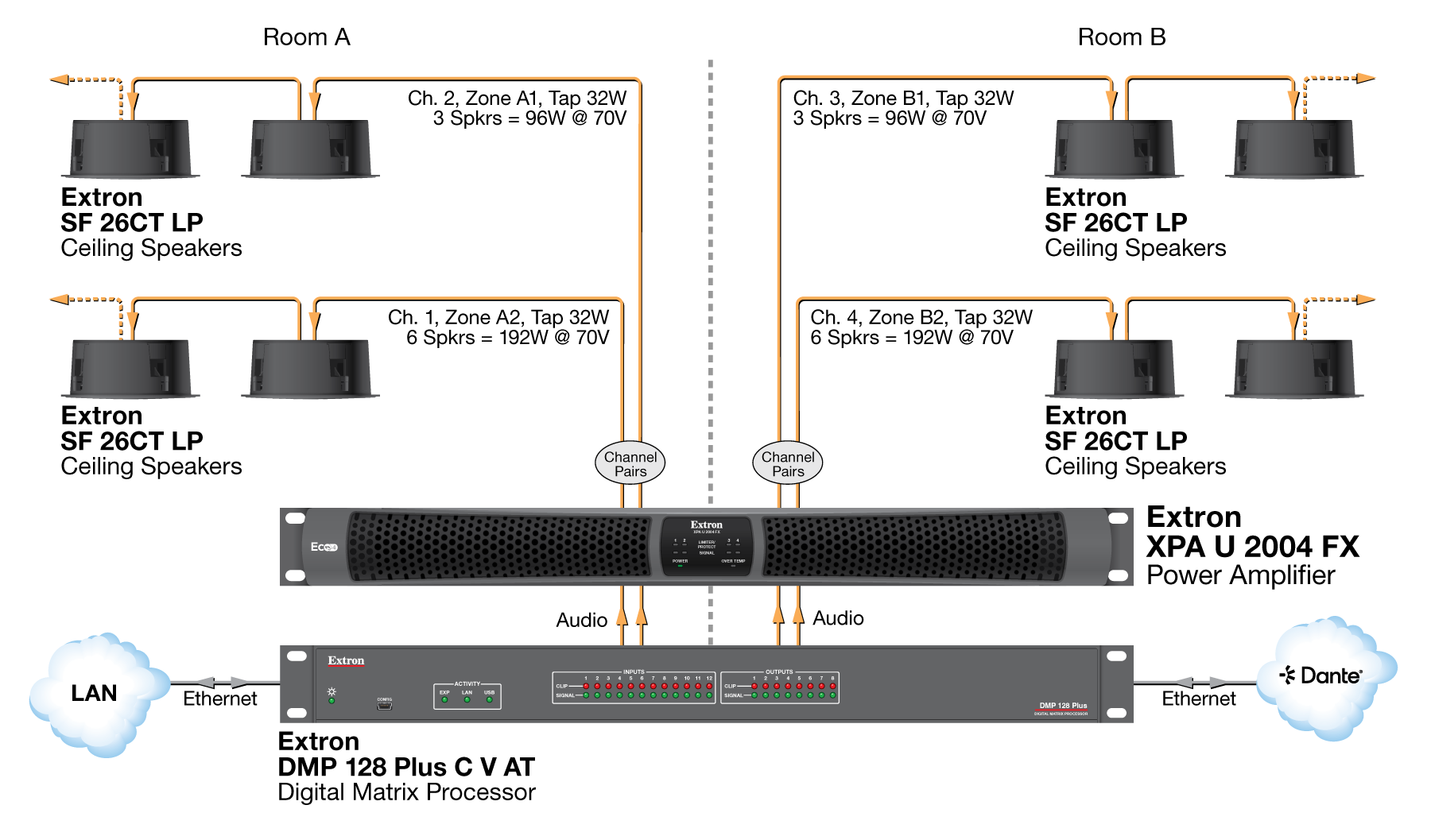

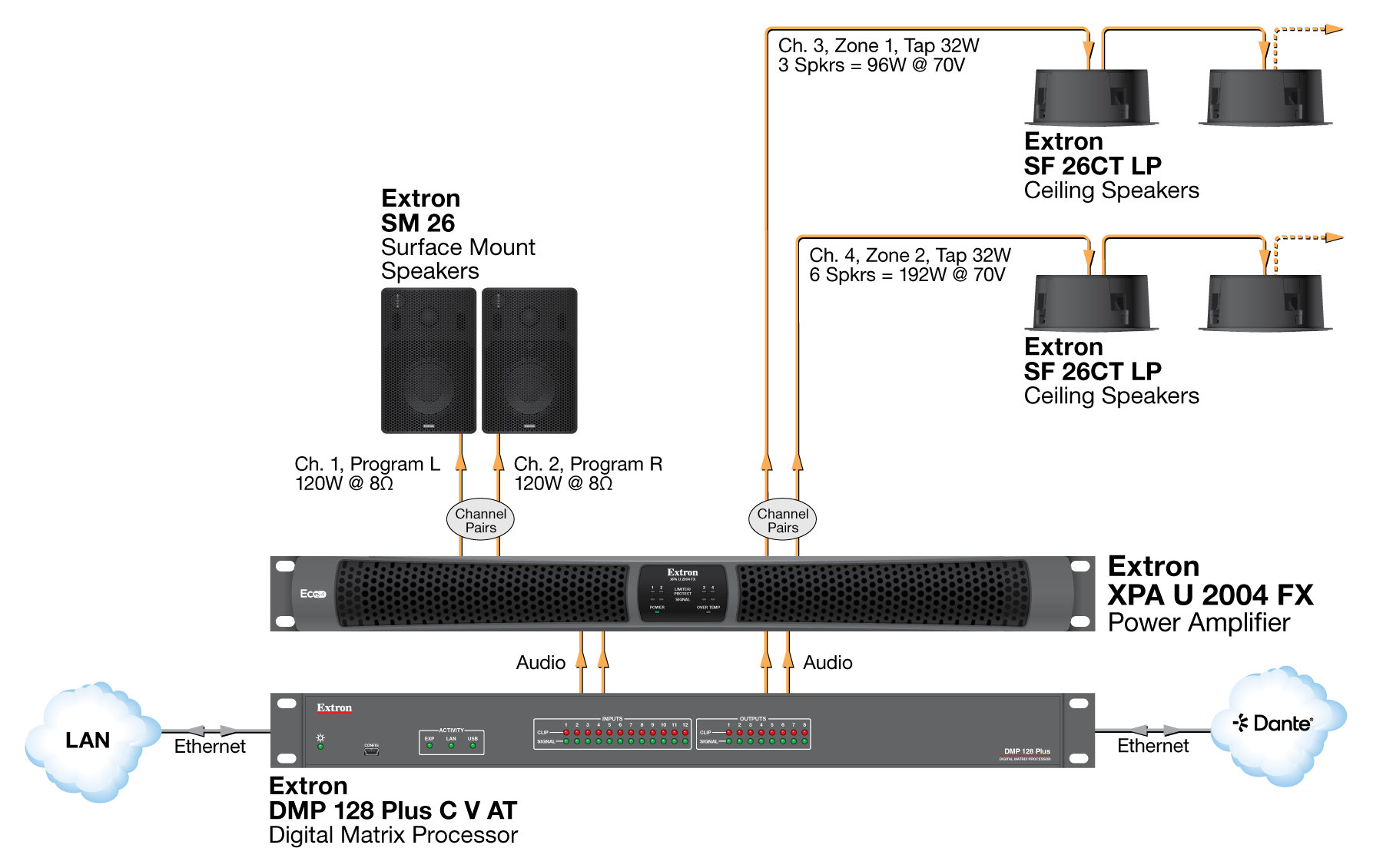

The combination of flexible power allocation and configurable output modes allows a single XPA U 2004 FX to accommodate a high power stereo pair of low impedance speakers in addition to multiple zones of 70V or 100V speakers.

InstaWake+ with Intelligent ECO Standby

The XPA U 2004 FX includes intelligent ECO Standby technology that places the amplifier into standby after just a few seconds of inactivity. When in standby, it draws under one watt of power. When signal is detected, it comes out of standby in under 5 milliseconds, fast enough that even the sharpest beginning of audio is not cut off. This exclusive Extron technology automatically maximizes the amplifier's time in its lowest power state to conserve more power than ever before. For applications where the amplifier is required to remain active at all times, the auto-standby and ECO Standby features can be easily and independently disabled.

Table based on: 195 days office or teaching days – 6 hours on – 2 hrs idle – 16 hours standby
Annual Energy and Cost Savings Using InstaWake+ with ECO Standby
Model	1/8 Power	Idle Power	Standby Power	kWh per Year	Annual Energy Cost $0.15 - $0.45 per kWh
XPA U 2004 FX	148 Watts	1 Watt	1 Watt	177 kW-hr	$26- $80
Competitor A	414 Watts	114 Watts	31 Watts	752 kW-hr	$113 - $338
Competitor B	460 Watts	138 Watts	92 Watts	1254 kW-hr	$188 - $564

Compact Installations

The fan-cooled XPA U 2004 FX doesn't require adjacent empty rack spaces for cooling, allowing it to consume less rack space than competing amplifiers. Combined with hundreds of precise design choices, this enables many XPA U 2004 FX units to be efficiently stacked in an equipment rack.

Designed by Extron

All circuits in an Extron power amplifier are designed by our team of dedicated power amplifier engineers, ensuring that each model meets or exceeds our high standards of excellence. By designing everything in-house, Extron engineers can meticulously and effectively optimize for maximum performance, reliability, power efficiency, and reduced heat.

Rock-Solid Reliability

Product reliability is a high priority at Extron and we go to great lengths to engineer products with industry-leading low failure rates, driven by rigorous testing of everything we ship. The elimination of short-lived electrolytic capacitors in the signal path, PCB designs that exclude the use of failure-prone wire harnesses, the use of long life fans, and accelerated burn-in testing ensure the XPA U 2004 FX will provide many years of service.

Features

Four 200 watt channels into 8 ohms, 4 ohms, 70V, or 100V — The XPA U 2004 FX is designed for large, high-powered multi-zone integration projects.

Configurable output mode per channel — Allows this single amplifier model to be used in multi-zone installations with unique configurations per channel.

Flexible power allocation to match system requirements — 400 total watts is shared between adjacent odd/even channel pairs to provide the right amount of power where it's needed.

InstaWake+™ exits auto-standby mode in under 5 milliseconds — The XPA U 2004 FX quickly returns to full power in less than 5 ms upon signal detection, with minimal inrush current.

ECO Standby delivers power only when needed, maximizing energy savings — Enabled by default, ECO Standby allows the XPA U 2004 FX to quickly and automatically enter standby mode when no audio signal is detected, greatly reducing power consumption. All modes of auto-standby can be completely disabled if required.

Meets Ecofficient^® Level 4 — Includes the Extron exclusive ECO Standby Mode, providing the maximum possible energy conservation.

HPF selectable for 70V and 100V channel modes — Prevents saturation of speaker transformer cores.

Rack-mountable 1U, full rack width enclosure — With the capability to deliver high performance in one rack space, the XPA U 2004 FX reduces rack space requirements for many installations.

Rear rack mounts included — The included rear rack mounts are easy to install and provide additional stability.

Front to rear fan-cooled — Premium, long lifespan fans that run quietly at low RPM actively push heat away from sensitive components, extending their life. Easy to remove and clean foam air filters maintain airflow performance.

Freely stackable while maintaining cool operation

Rotary output mode selection switches — Easily, quickly, and reliably select the required output mode.

Professional grade signal-to-noise and THD+N performance — The XPA U 2004 FX delivers professional grade performance, featuring 100 dB signal-to-noise ratio and THD+N of less than 0.1%.

Ultra low inrush current at power up - no need for power sequencing — Allows multiple XPA Ultra FX series amplifiers to be powered on simultaneously without overloading power circuits. This eliminates the need for power sequencing.

Power factor correction - removes harmonic content on AC line — The XPA U 2004 FX features power factor correction technology that smooths out the high peak currents of the amplifier’s current draw, minimizing the presence of high frequency harmonics on the AC power line, preventing audible artifacts from being transmitted to other audio equipment in the system.

Rear panel recessed, detented level controls — Provides attenuation of input signals for adjusting audio system gain staging. These controls are located on the rear panel to prevent tampering with level adjustments. Laser etched markings provide enhanced visibility of settings for ease of configuration.

Remote standby port — Enables the XPA U 2004 FX to be remotely powered down when not in use, reducing operating cost.

Automatic clip limiter — Detects actual onset of clipping. Gain is automatically reduced without audible artifacts to protect speakers from clipping distortion.

Multiple protection circuits — Activate during output shorts, thermal overload, or DC faults to prevent damage to the amplifier and speakers.

5 mm screw-lock captive screw speaker connectors — Enable simple, secure connections with 22 to 12 AWG speaker cables.

Front and rear-mounted signal and protection indication LEDs — Provide convenient indication of input signal presence and protection circuit activation from both sides of an equipment rack.

Front panel over-temperature LED — Provides visual indication that the amplifier's temperature has exceeded the optimal value, well in advance of the onset of thermal protection circuitry.

Internal Extron Everlast^® power supply — Provides worldwide power compatibility, with high‑demonstrated reliability and low power consumption for reduced operating cost.

Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty

OPTIONAL ACCESSORIES
	SPK 14	14 AWG Speaker Cable
	SPK 16	16 AWG Speaker Cable
	SPK 18	18 AWG Speaker Cable

OPTIONAL ACCESSORIES

SPK 14

14 AWG Speaker Cable

SPK 16

16 AWG Speaker Cable

SPK 18

18 AWG Speaker Cable

RELATED SPEAKERS
	SF 26CT	SoundField XD 6.5" Two-Way Ceiling Speaker with 8" Composite Back Can and 70/100 V Transformer
	SF 26CT LP	SoundField XD 6.5" Two-Way Ceiling Speaker with Low Profile Back Can
	SF 3CT LP	SoundField XD 3" Full-Range Ceiling Speakers with 4" Low Profile Composite Back Can and 70/100 V Transformer
	SF 3PT	SoundField 3" Full-Range Pendant Speaker
	SF 26PT	SoundField 6.5" Two-Way Pendant Speaker
	SF 28PT	SoundField 8" Two-Way Pendant Speaker
	CS 123T	Full-Range 70/100 V SpeedMount Ceiling Speaker System
	CS 3T	Full-Range Open Back Ceiling Speakers with 70/100 V Transformer
	CS 1226T Plus	Two-Way 70/100 V SpeedMount Ceiling Speaker System
	CS 26T Plus	Two-Way Open Back Ceiling Speakers with 70/100 V Transformer
	SM 26	SpeedMount Two-Way Surface Mount Speakers with 6.5" Woofer
	SM 28	SpeedMount Two-Way Surface Mount Speakers with 8" Woofer
	CA 163	Long Throw Column Array Speaker
	SF 10C SUB	SoundField In-Ceiling Subwoofer
	SF 8CT SUB	SoundField 8" In-Ceiling Subwoofer

RELATED SPEAKERS

SF 26CT

SoundField XD 6.5" Two-Way Ceiling Speaker with 8" Composite Back Can and 70/100 V Transformer

SF 26CT LP

SoundField XD 6.5" Two-Way Ceiling Speaker with Low Profile Back Can

SF 3CT LP

SoundField XD 3" Full-Range Ceiling Speakers with 4" Low Profile Composite Back Can and 70/100 V Transformer

SF 3PT

SoundField 3" Full-Range Pendant Speaker

SF 26PT

SoundField 6.5" Two-Way Pendant Speaker

SF 28PT

SoundField 8" Two-Way Pendant Speaker

CS 123T

Full-Range 70/100 V SpeedMount Ceiling Speaker System

CS 3T

Full-Range Open Back Ceiling Speakers with 70/100 V Transformer

CS 1226T Plus

Two-Way 70/100 V SpeedMount Ceiling Speaker System

CS 26T Plus

Two-Way Open Back Ceiling Speakers with 70/100 V Transformer

SM 26

SpeedMount Two-Way Surface Mount Speakers with 6.5" Woofer

SM 28

SpeedMount Two-Way Surface Mount Speakers with 8" Woofer

CA 163

Long Throw Column Array Speaker

SF 10C SUB

SoundField In-Ceiling Subwoofer

SF 8CT SUB

SoundField 8" In-Ceiling Subwoofer

RELATED PRODUCTS
	XPA U 1002	Two Channel Low and High Impedance Amplifiers 100 Watts Per Channel
	XPA U 3502	Two Channel Audio Power Amplifier 350 Watts Per Channel
	XPA U 1004	Four Channel Low and High Impedance Amplifiers 100 Watts Per Channel
	XPA U 358	Eight Channel Low and High Impedance Amplifiers 35 Watts Per Channel
	XPA U 758	Eight Channel Low Impedance Amplifier 75 Watts Per Channel
	NetPA 204 POE	Four Channel PoE Amplifier with Dante and DSP 20 Watts per Channel
	NetPA U 2004 FX	Four Channel Configurable Output Amplifier with Dante and DSP 200 Watts Per Channel
	NetPA U 2008 FX	Eight Channel Configurable Output Amplifier with Dante and DSP 200 Watts Per Channel
	NetPA U 4004 FX	Four Channel Configurable Output Amplifier with Dante and DSP 400 Watts Per Channel
	NetPA U 2002 SB	Two Channel Bridgeable Output Amplifier with Dante and DSP 200/400 Watts Per Channel
	NetPA U 1002	Two Channel Power Amplifiers with Dante and DSP 100 Watts Per Channel
	NetPA U 1004	Four Channel Power Amplifiers with Dante and DSP 100 Watts Per Channel
	NetPA U 8001 SUB	Mono Subwoofer Amplifier with Dante and DSP 800 watts
	XPA 1002	Two Channel Low Impedance Amplifier 60/100 Watts Per Channel
	XPA 2001	Mono 70/100 V Amplifier - 200 Watts
	XPA 2004	Four Channel Amplifier - 200 Watts Per Channel
	XPA 4002	Two Channel Amplifier - 400 Watts Per Channel
	MPA 152 Plus	Stereo Amplifier - 15 Watts Per Channel
	MPA 601	Mono 70/100 V Amplifier - 60 Watts

SIMILAR PRODUCTS
	XPA U 2008 FX	Eight Channel Configurable Output Audio Power Amplifier 200 Watts Per Channel
	XPA U 4004 FX	Four Channel Configurable Output Audio Power Amplifier 400 Watts Per Channel
	XPA U 2002 SB	Two Channel Bridgeable Output Amplifier 200/400 Watts Per Channel
	XPA U 1004 SB	Four Channel Bridgeable Output Amplifier 100/200 Watts Per Channel
	XPA U 358C	Eight Channel Combo Amplifier 35 Watts Per Channel

SIMILAR PRODUCTS

XPA U 2008 FX

Eight Channel Configurable Output Audio Power Amplifier
200 Watts Per Channel

XPA U 4004 FX

Four Channel Configurable Output Audio Power Amplifier
400 Watts Per Channel

XPA U 2002 SB

Two Channel Bridgeable Output Amplifier
200/400 Watts Per Channel

XPA U 1004 SB

Four Channel Bridgeable Output Amplifier
100/200 Watts Per Channel

XPA U 358C

Eight Channel Combo Amplifier
35 Watts Per Channel

Specifications

XPA U 2004 FX and XPA U 2008 FX with ECO Standby

Audio

Voltage gain

XPA U 2008 FX, XPA U 2004 FX

8-ohm mode

46x (33 dB)

4-ohm mode

33x (30 dB)

70 V mode

58x (35 dB)

100 V mode

81x (38 dB)

CMRR

75 dB (typical) @ 1 kHz

Audio input

Number/signal type

XPA U 2004 FX

4 balanced/unbalanced

XPA U 2008 FX

8 balanced/unbalanced

Connectors

XPA U 2004 FX

(2) 5-pin 3.5 mm captive screw connectors

XPA U 2008 FX

(4) 5-pin 3.5 mm captive screw connectors

Impedance

>10k ohms balanced/unbalanced, DC coupled

Nominal level

+4 dBu, balanced

Maximum level

+20 dBu, balanced

Input sensitivity

8 ohm/4 ohm modes

+4 dBu (1.23 Vrms) for 400 W @ 8/4 ohms
+1 dBu (0.87 Vrms) for 200 W @ 8/4 ohms

70 V/100 V modes

+4 dBu (1.23 Vrms)

Input signal detection threshold

-65 dBu ±3 dB, balanced

NOTE	0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

Audio output

Number/signal type

XPA U 2004 FX

4 channels, 8 ohm, 4 ohm, 70 V or 100 V

XPA U 2008 FX

8 channels, 8 ohm, 4 ohm, 70 V or 100 V

Connectors

XPA U 2004 FX

(4) 2-pole, 5 mm screw-lock captive screw connectors

XPA U 2008 FX

(8) 2-pole, 5 mm screw-lock captive screw connectors

Load impedance

8-ohm mode

8 ohms minimum

4-ohm mode

4 ohms minimum

70 V mode

12.5 ohms minimum for 400 W

100 V mode

25 ohms minimum for 400 W

Amplifier type

Class D

Output power

200 W per channel (all channels driven), 4Ω / 8Ω / 70 V / 100 V, 1 kHz, 0.2% THD
400 W per channel (one channel driven per pair), 4Ω / 8Ω / 70 V / 100 V

Frequency response

20 Hz to 20 kHz, ±1 dB, 4Ω / 8Ω / 70 V / 100 V

THD+Noise

0.2% @ 1 kHz, 8 ohm, at 3 dB below clipping

S/N

100 dB, 20 Hz - 20 kHz, unweighted

High pass filter

70 V or 100 V modes

80 Hz, 12 dB per octave rolloff (switch selectable)

NOTE	0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

Control/remote — amplifier

Control port

(1) 3.5 mm captive screw, 2-pole

Pin configuration

Standby power control (contact closure)

Pin 1 = GND, Pin 2 = Standby

General

Power

100 VAC to 240 VAC, 50-60 Hz, internal

Power consumption and thermal dissipation

XPA U 2004 FX with ECO Standby

		115 VAC, 60Hz				230 VAC, 50Hz
		AC Line Current	AC Power Consumed	Thermal Dissipation		AC Line Current	AC Power Consumed	Thermal Dissipation
Condition		A	W	W	BTU/hr	A	W	W	BTU/hr
Active (1/8 power), all channels driven	8Ω	1.4	157.2	57.2	195	0.9	154.0	54.0	184
	4Ω	1.7	183.8	83.8	286	1.0	180.0	80.0	273
	70V	1.4	147.9	47.9	163	0.8	145.2	45.2	154
	100V	1.3	139.8	39.8	136	0.8	137.5	37.5	128



Quiescent (idle)		0.3	28.0	28.0	96	0.3	27.5	27.5	94
Standby		<0.2	<1	<1	<3	<0.2	<1	<1	<3

XPA U 2008 FX with ECO Standby

		115 VAC, 60Hz				230 VAC, 50Hz
		AC Line Current	AC Power Consumed	Thermal Dissipation		AC Line Current	AC Power Consumed	Thermal Dissipation
Condition		A	W	W	BTU/hr	A	W	W	BTU/hr
Active (1/8 power), all channels driven	8Ω	3.0	311.7	111.7	381	1.9	305.4	105.4	360
	4Ω	3.4	361.5	161.5	551	2.1	354.3	154.3	526
	70V	2.8	295.0	95.0	324	1.8	288.7	88.7	303
	100V	2.6	274.5	74.5	254	1.6	268.7	68.7	234



Quiescent (idle)		0.5	49.1	49.1	167	0.4	47.6	47.6	162
Standby		<0.2	<1	<1	<3	<0.2	<1	<1	<3

Ambient temperature/humidity

Storage

−40 to +158°F (−40 to +70°C) / 10% to 90%, non-condensing

Operating

+32 to +122°F (0 to +50°C) / 10% to 90%, non-condensing

Cooling

Fan, front-to-rear, variable speed

Protection

Clip limiting, thermal, short circuit, DC output

Indication

Limiter/Protect LED indicates the onset of clip limiting, thermal cycling, or a short circuit
Power LED indicates DC output protection (see the XPA U 2004 FX and XPA U 2008 FX User Guide for details)

Mounting

Rack mount

Yes, with included mounting brackets

Rear rack ear mounting depth

15.48” to 26.13” D (front rack rails to rear rack rails)
(393 mm to 664 mm D)

Enclosure type

Metal (aluminum)

Enclosure dimensions

1.74" H x 17.31" W x 16.5" D (1U high, full rack wide)
(44 mm H x 440 mm W x 419 mm D)
(Width excludes faceplate and rack ears. Depth excludes rear rack ears.)

Product weight

XPA U 2004 FX

10.1 lb. (4.6 kg)

XPA U 2008 FX

13.0 lb. (5.9 kg)

Regulatory compliance

CE, CEC, CISPR 22 Class B, C-Tick, c-UL, Ecofficient Level 4, European Code of Conduct, FCC Class B, ICES, RoHS, UL, VCCI Class B
meets UL 62368-1, IEC 62368-1, and EN 62368-1 for AV equipment

Warranty

3 years parts and labor

Everlast power supply warranty

7 years parts and labor

NOTE	All nominal levels are at ±10%.

NOTE	Specifications are subject to change without notice.

(6606-D1)

Shipping Dimensions and Weights
Part #	Height	Width	Depth	Weight
60-2026-01	4.69" (11.9 cm)	21.02" (53.4 cm)	21.85" (55.5 cm)	15.96 lbs (7.24 kg)
60-2026-02	3.0" (7.6 cm)	20.25" (51.4 cm)	22.75" (57.8 cm)	15.0 lbs (6.8 kg)
70-1341-01	0.5" (1.3 cm)	6.0" (15.2 cm)	10.0" (25.4 cm)	0.05 lbs (0.02 kg)

XPA U 2004 FX New

Configurable Output Modes and Flexible Power Allocation

InstaWake+ with Intelligent ECO Standby

Compact Installations

Designed by Extron

Rock-Solid Reliability

Features

Specifications

Diagram

Panel Drawing
